$104.95
$125.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

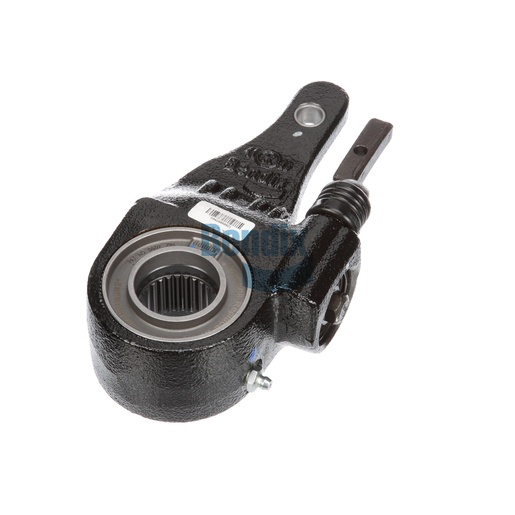

The Bendix Automatic Slack Adjuster is specifically designed to enhance the efficiency and reliability of your vehicle's braking system. This advanced slack adjuster ensures that your brakes maintain optimal performance automatically, reducing the need for manual adjustments and improving overall safety. With a torque rating of 20,000 IN LBS and a robust construction, it is built to withstand the demands of heavy-duty applications. Featuring a link-style design, the slack adjuster provides quick response times, ensuring that brake pressure is applied effectively when needed. Its wide operating temperature range makes it suitable for diverse environments, providing peace of mind whether you're on the highway or navigating rough terrain. Source One Parts Center is the leading destination for genuine Bendix OEM parts, ensuring you receive only the highest quality products for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
206.3 mm (8.12 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
6.53 lb
