$184.95
$221.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

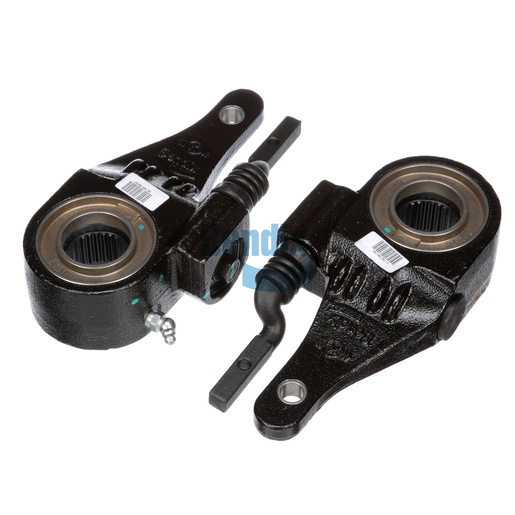

The Bendix Slack Adjuster (Automatic) is an innovative solution designed to enhance the performance of your vehicle's braking system. This automatic slack adjuster ensures optimal brake performance by maintaining the correct brake shoe clearance, significantly improving overall safety. Its link style design provides reliable adjustments, reducing the need for manual intervention, which can save time and reduce wear on the braking components. With a torque rating of 20,000 IN LBS and robust construction, it is built to withstand the rigors of heavy-duty applications. Weighing 6.0 kg, this slack adjuster combines lightweight design with exceptional strength. For those looking to equip their vehicles with reliable and efficient components, Source One Parts Center is the best destination for sourcing genuine Bendix OEM parts that guarantee quality and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
206.3 mm (8.12 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
13.27 lb
