K041870

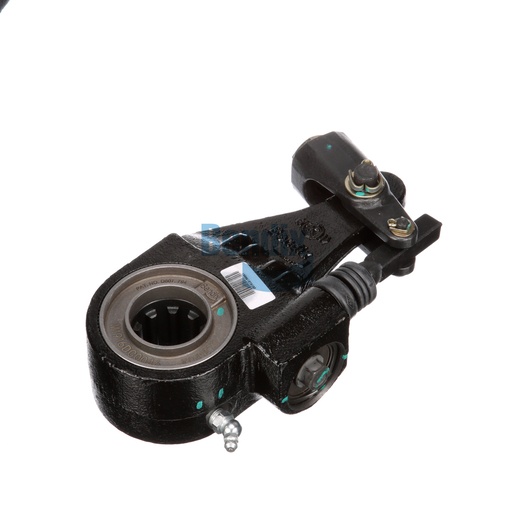

Slack Adjuster (Automatic)
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$169.95
$203.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Automatic Slack Adjuster is an innovative component designed for seamless integration into Bendix braking systems, ensuring consistent and reliable performance across various commercial vehicles. This link-style adjuster features a torque rating of 20,000 in-lbs and is built to withstand harsh environmental conditions, with a wide operating temperature range from -40°F to 158°F. Its easy-on clevis design simplifies installation and maintenance, reducing downtime for fleet operators. The adjuster plays a crucial role in maintaining the optimal brake shoe clearance, enhancing safety and performance. For those in need of genuine Bendix parts, Source One Parts Center is the premier source for authentic OEM components that guarantee quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.61 lb
