$144.95
$173.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

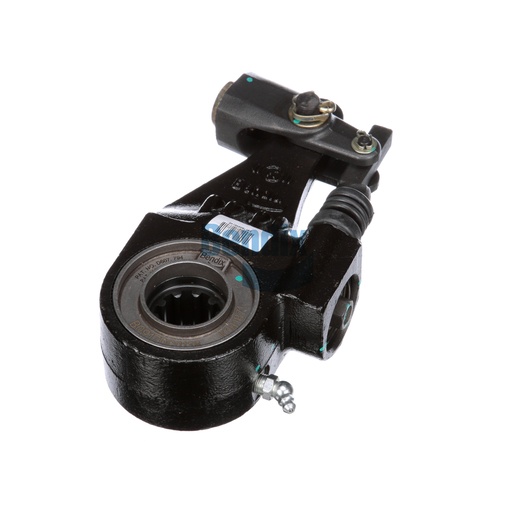

The Automatic Slack Adjuster is engineered to provide exceptional performance and reliability for your brake system. This versatile part features a link style design, ensuring that your brakes maintain optimal slack automatically, which enhances safety and braking efficiency. With a torque rating of 20,000 in-lbs, this slack adjuster is built to withstand the pressures of heavy-duty applications. Its easy-on clevis style allows for efficient installation, while the robust construction ensures longevity even in harsh conditions. Suitable for a range of temperatures from -40°F to 158°F, it fits seamlessly into various vehicle configurations. For quality and authenticity, Source One Parts Center is the prime destination for genuine Bendix OEM parts, ensuring you get the best for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Adaptor Size
1/2-20 UNF-2B
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.25 IN - 10 Spline
Weight
7.9 lb
