K041876

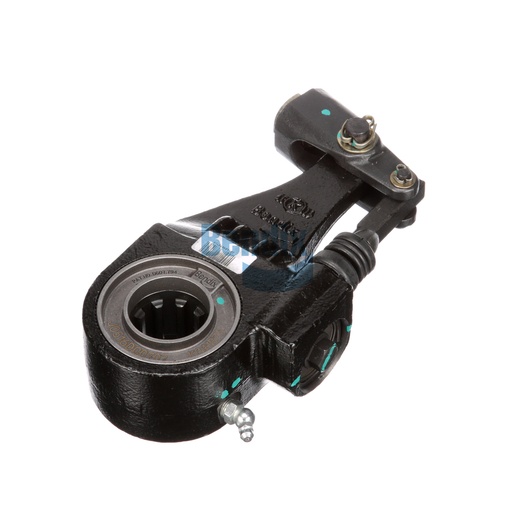

Slack Adjuster (Automatic)
Bendix
IN STOCK
2 are currently available
Ships within 1 business day
$89.95
$107.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Automatic Slack Adjuster is a vital component in maintaining optimal braking performance in commercial trucks. This link-style adjuster automatically adjusts the brake shoes to compensate for wear, ensuring consistent braking force without the need for manual adjustments. With a torque rating of 20,000 IN LBS, this slack adjuster is designed to handle the demands of heavy-duty applications, while its easy-on clevis style simplifies installation. The adjuster's robust construction ensures durability, minimizing downtime and maintenance costs. Ideal for both front and rear brakes, this part enhances the safety and reliability of your braking system. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing high-quality components for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
7.5 lb
