K041877

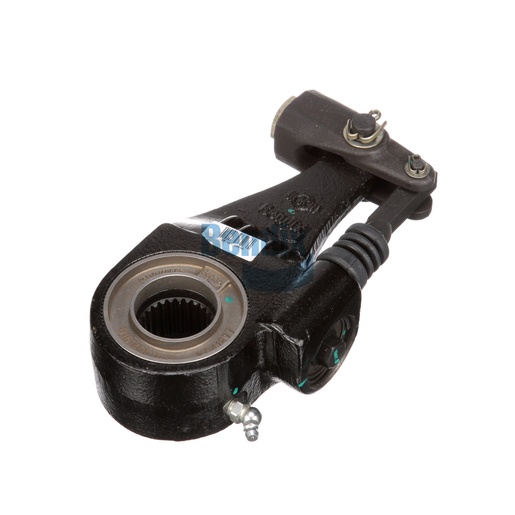

Slack Adjuster (Automatic)
Bendix
IN STOCK
4 are currently available
Ships within 1 business day
$219.95
$263.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix slack adjuster, featuring an automatic link style design, is an essential component for maintaining optimal brake performance in commercial vehicles. This adjuster is engineered to automatically adjust the brake shoes, ensuring consistent contact for effective stopping power while minimizing the need for manual adjustments. With a robust torque rating and durable materials, this slack adjuster is built to withstand the demands of heavy-duty applications. Its easy installation process makes it a practical choice for fleet operators looking to enhance their vehicles' braking systems. Choose Source One Parts Center for your genuine Bendix OEM parts, where quality and performance are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Arm Length 1
6.00 IN
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.29 lb
