$129.95
$155.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

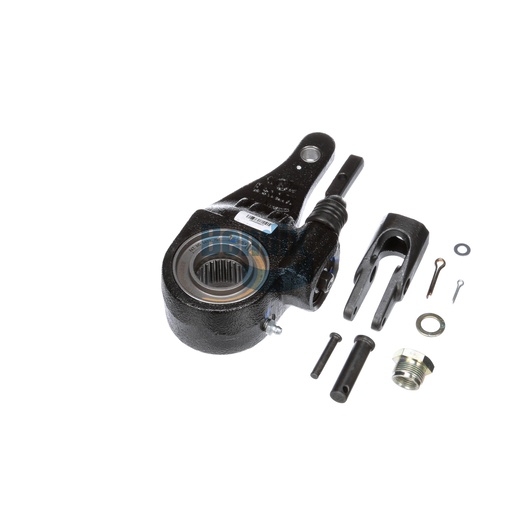

The Automatic Slack Adjuster is a vital component for ensuring optimal brake performance in your commercial vehicle. This link-style adjuster is designed to automatically maintain the correct slack in your brake system, enhancing safety and reliability. With a torque rating of 20,000 in-lbs and a robust construction to withstand harsh conditions, this slack adjuster ensures consistent brake application and performance. The easy-on clevis design simplifies installation and maintenance, making it user-friendly for technicians. Operating efficiently between -40°F and 158°F, it is suitable for a wide range of environments, providing peace of mind for fleet operations. For the best selection of genuine Bendix OEM parts, look no further than Source One Parts Center, where quality meets reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Lube Fitting Type
45° Elbow
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
7.65 lb
