$189.95
$227.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

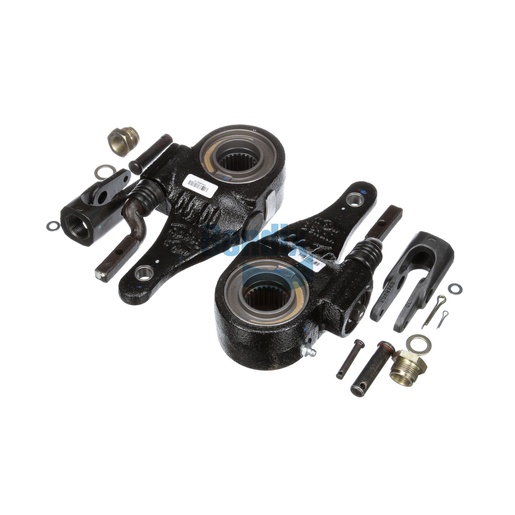

The Bendix Automatic Slack Adjuster is engineered to enhance the performance and safety of your vehicle’s brake system by automatically adjusting the brake shoe clearance. This innovative slack adjuster features a link style design that ensures consistent and accurate adjustments under varying load conditions, reducing the risk of brake fade and enhancing stopping power. Its robust construction and easy installation make it an ideal choice for both new and retrofitted vehicles. Designed to handle the rigors of commercial use, this slack adjuster maintains optimal brake performance, ensuring your vehicle remains safe and compliant with regulations. With a torque rating of 20,000 IN LBS and a minimum operating temperature of -40°F, it is built for reliability. When you need to source high-quality Bendix parts, look no further than Source One Parts Center, where you can find genuine OEM parts that meet or exceed industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Adaptor Length
.78 IN (19.8 MM)
VMRS
013-017-017: Slack Adjuster - Automatic, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Length
114.7 mm (4.52 in)
Maximum Operating Temperature
158 °F (70 °C)
Torque Rating
20,000 IN LBS
Height
212.0 mm (8.35 in)
Arm Length 1
5.50 IN
Adaptor Size
5/8-18 UNF-2B
Width
51.3 mm (2.02 in)
Harmonized System (HS) Code
870830
Clevis / Yoke Style
Easy-On (EO)
Country of Origin
India
Product Type
Link Style
Arm Offset
No Offset
Lube Fitting Type
Straight
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
15 lb
