$38.95
$46.74
Minimum Quantity 6
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

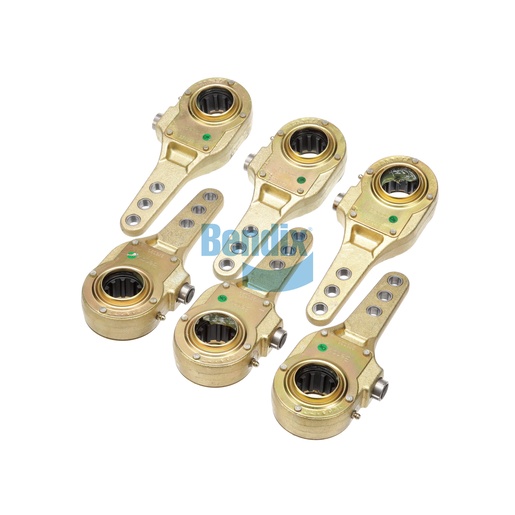

The Manual Slack Adjuster is an essential component for maintaining the brake system in your Bendix-equipped vehicle, providing the necessary adjustments to ensure optimal braking performance. This adjuster is designed for ease of use, allowing for manual adjustments to be made quickly and efficiently, which is vital for maintaining safety in heavy-duty applications. With a torque rating of 26,000 IN LBS, it is built to handle the demands of commercial use while ensuring consistent brake performance. Weighing only 4.28 lbs, this slack adjuster is compact and straightforward to install, making it a practical choice for fleet maintenance. Source One Parts Center is the trusted source for genuine Bendix OEM parts, ensuring that your vehicle operates safely and effectively on the road.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Width
102.0 mm (4.02 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 3
5.00 IN
Length
51.0 mm (2.01 in)
Arm Length 2
6.00 IN
Arm Length 1
7.00 IN
Harmonized System (HS) Code
870839,870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 10 Spline
Weight
4.28 lb
