$38.95
$46.74
Minimum Quantity 6
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

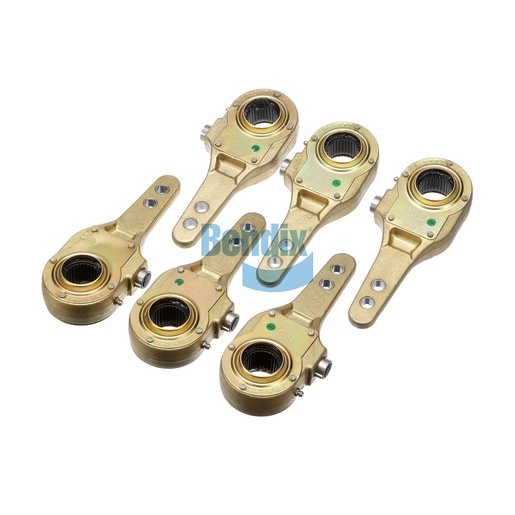

The Manual Slack Adjuster from Bendix offers a reliable solution for maintaining optimal brake performance in commercial vehicles. This essential component ensures that your braking system remains properly adjusted, enhancing safety and efficiency on the road. With a robust torque rating of 26,000 inch-pounds, this slack adjuster is built to handle the demands of heavy-duty applications, providing peace of mind for drivers and fleet operators alike. Its user-friendly design allows for easy manual adjustments, ensuring that brakes are always in peak condition for maximum stopping power. By investing in this durable and efficient slack adjuster, you can extend the life of your braking system while reducing maintenance costs. Don’t compromise on safety; ensure your vehicle is equipped with the best. For genuine Bendix OEM parts that deliver unparalleled quality, look no further than Source One Parts Center.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-017-005: Slack Adjuster - Manual, Position Not Specified
Inclination Angle (Body Angle)
0°
Lube Fitting Position
0°
Width
102.0 mm (4.02 in)
Maximum Operating Temperature
158 °F (70 °C)
Height
237.0 mm (9.33 in)
Torque Rating
26,000 IN LBS
Arm Length 2
5.50 IN
Length
51.0 mm (2.01 in)
Arm Length 1
6.50 IN
Harmonized System (HS) Code
870830
Country of Origin
China
Product Type
Manual - Type 26
Arm Offset
No Offset
Lube Fitting Type
Straight
Arm Bushing(s)
Ø .50 IN (Ø 12.7 MM)
Spline Diameter - Teeth
Ø 1.50 IN - 28 Spline
Weight
4.43 lb
