DESCRIPTION

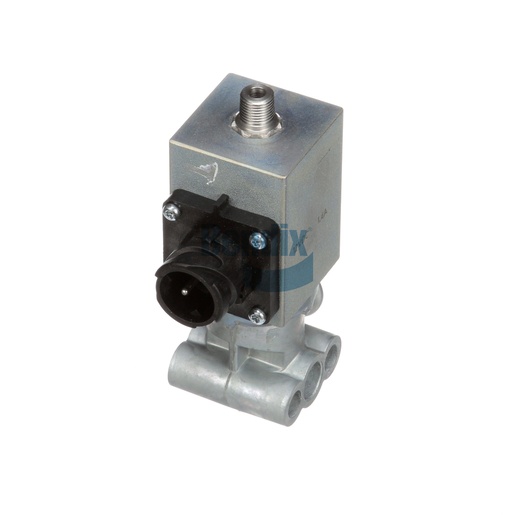

The Solenoid Valve is a vital component of the braking system, designed to control the flow of air within various applications. This valve, weighing 1.64 lbs, is engineered for reliability and performance, ensuring that your vehicle can respond quickly and effectively to braking commands. With a 12 VDC nominal voltage and an ingress protection rating of IP69K, this solenoid valve is built to endure harsh environments, making it suitable for heavy-duty commercial use. Its compact design features a 2-way circular DIN connector for easy installation and maintenance. By incorporating this solenoid valve into your braking system, you can enhance the overall efficiency and responsiveness of your vehicle. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted source, offering top-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Operating Pressure Range
0 - 12.5 Bar (181 PSI)
VMRS
013-011-077: Traction Control Valve (TCV) - Antilock Brakes
Current (Nominal)
1.4 A
Delivery Port
1/4-18 NPT (Female)
Supply Port
1/4-18 NPT (Female)
Service Port
1/8-27 NPT (Male)
Height
115.0 mm (4.53 in)
Voltage (Nominal)
12 VDC
Maximum Operating Pressure
12.5 Bar (181 PSI)
Maximum Operating Temperature
176 °F (80 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Length
40.0 mm (1.57 in)
Width
69.0 mm (2.72 in)
Coil Resistor
8.5 Ohms
Harmonized System (HS) Code
848120
Ingress Protection Rating
IP69K
Cautionary Note(s)
Max. Torque < 18 lb-ft. Install fittings no more than 1 turn.
Country of Origin
Poland
Operation
Solenoid State (NO / NC) is determined by application plumbing
Product Type
Stand-Alone
Mounting
Ø 8.5 mm (2x)
Weight
1.64 lb
