$93.95
$112.74

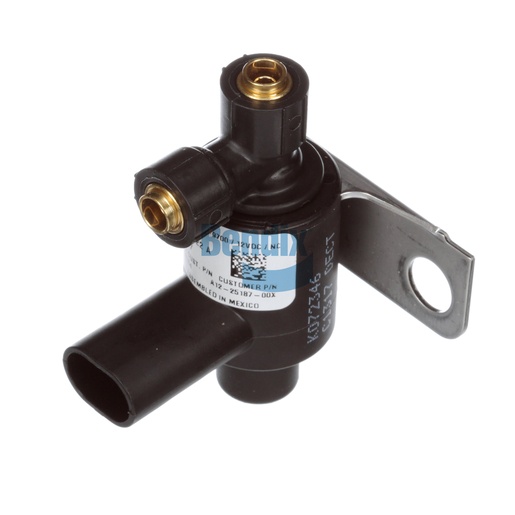

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Fan Clutch Solenoid from Bendix is a crucial part of your vehicle's cooling system, ensuring that your engine runs efficiently under all conditions. This solenoid features a normally closed design that activates the fan clutch, helping to manage engine temperature effectively. With a robust construction, it is built to withstand the harsh conditions typically found in commercial operations. The solenoid's precise engineering ensures reliable performance, contributing to better fuel economy and reduced engine wear. Designed for easy installation, it seamlessly integrates with existing systems, making it an excellent choice for both repairs and upgrades. With its operational reliability, the Fan Clutch Solenoid plays a significant role in enhancing your vehicle's overall performance. For the best in genuine Bendix OEM parts, trust Source One Parts Center, your go-to for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
042-003-024: Solenoid Valve - Fan Clutch
Delivery Port
1/4 PTC
Supply Port 1
1/4 PTC
Flyback Diode
1N4004
Maximum Operating Temperature
221 °F (105 °C)
Resistance
38 ± 2 Ohms (at 70°F)
Width
53.6 mm (2.11 in)
Length
59.2 mm (2.33 in)
Operating Pressure Range
60 - 150 PSI
Height
78.0 mm (3.07 in)
Harmonized System (HS) Code
848120
Operating Voltage Range
9 VDC - 16 VDC
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Operation
NC - Normally Closed (Black)
Bracket Orientation
Right
Product Type
Stand-Alone
Inlet Orifice
Ø .045 IN
Exhaust Orifice
Ø .047 IN
Mounting
Ø .440 IN
Weight
0.35 lb
