$85.95
$103.14
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

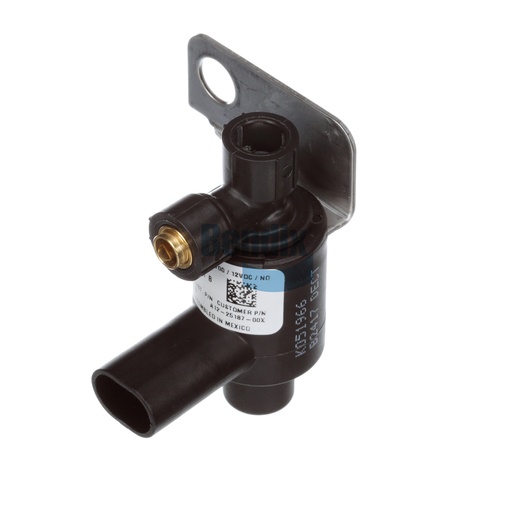

The Fan Clutch Solenoid is a critical component that plays a vital role in managing your truck's cooling system efficiently. Designed for reliability, this solenoid operates with a normally open configuration and features a robust construction that can withstand varying temperatures. With a wide operating voltage range of 9 to 16 VDC and an operating pressure range of 60 to 150 PSI, it ensures optimal performance under diverse conditions. Its compact design includes a 1/4 PTC delivery port and requires minimal space for installation, making it perfect for various truck models. The solenoid's ability to control the fan clutch effectively helps in maintaining engine temperature, thus improving fuel efficiency and prolonging engine life. For genuine Bendix OEM parts, look no further than Source One Parts Center, where quality and reliability come first for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
042-003-024: Solenoid Valve - Fan Clutch
Delivery Port
1/4 PTC
Supply Port 1
1/4 PTC
Flyback Diode
1N4004
Maximum Operating Temperature
221 °F (105 °C)
Resistance
38 ± 2 Ohms (at 70°F)
Width
53.6 mm (2.11 in)
Length
59.2 mm (2.33 in)
Operating Pressure Range
60 - 150 PSI
Height
78.0 mm (3.07 in)
Harmonized System (HS) Code
848120
Operating Voltage Range
9 VDC - 16 VDC
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Operation
NO - Normally Open (White)
Bracket Orientation
Right
Product Type
Stand-Alone
Inlet Orifice
Ø .045 IN
Exhaust Orifice
Ø .047 IN
Mounting
Ø .440 IN
Weight
0.35 lb
