$89.95
$107.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

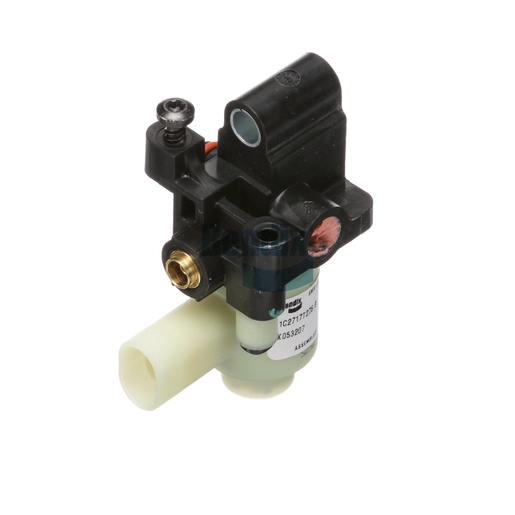

The Bendix Solenoid Assembly is an integral component in pneumatic systems, engineered to provide reliable performance in various applications. This assembly features a normally open operation, allowing for efficient air control, which is essential for optimal braking performance. With a compact design and a net weight of only 0.2 kg (0.35 lb), it is easy to install and integrates seamlessly into your existing system. Designed for durability, this solenoid operates effectively across a wide range of temperatures and pressures, ensuring consistent performance even in challenging environments. Whether you're managing a fleet or maintaining a single vehicle, the Bendix Solenoid Assembly is your go-to solution for enhancing air management and brake operation. For genuine Bendix OEM parts, Source One Parts Center is the premier choice, delivering quality and reliability for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-093: Solenoid Valve - Air
Delivery Port
1/4 PTC
Maximum Operating Temperature
185 °F (85 °C)
Resistance
19 ± 1 Ohms (at 70°F)
Flyback Diode
1N4004
Width
33.5 mm (1.32 in)
Length
46.2 mm (1.82 in)
Operating Pressure Range
60 - 150 PSI
Height
65.3 mm (2.57 in)
Harmonized System (HS) Code
848120
Operating Voltage Range
9 VDC - 16 VDC
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Operation
NO - Normally Open (White)
Supply Port 2
Open interlock stem
Supply Port 1
Open supply bore
Product Type
Stacking Manifold
Inlet Orifice
Ø .060 IN
Exhaust Orifice
Ø .070 IN
Mounting
Ø .440 IN
Weight
0.35 lb
