This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

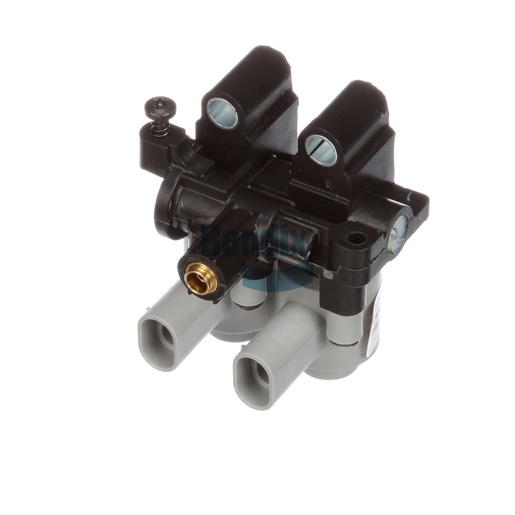

The Solenoid Assembly plays a pivotal role in the efficient operation of Bendix valves, providing reliable control for air brake systems in commercial vehicles. This advanced component features a latching NC-NC operation, ensuring consistent performance under varying conditions. With a robust design capable of withstanding temperatures from -40°F to 185°F, it is ideal for the demanding environments faced by heavy-duty trucks. The solenoid’s precision engineering includes a metrical pack connector for secure connections and optimized functionality, enhancing the reliability of your air brake system. Its lightweight design also makes for easy installation and maintenance, saving time and effort for technicians. When it comes to sourcing high-quality Bendix parts, look no further than Source One Parts Center, known for its commitment to genuine OEM products that exceed expectations.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-093: Solenoid Valve - Air
Delivery Port
1/4 PTC
Maximum Operating Temperature
185 °F (85 °C)
Flyback Diode
1N4004
Operating Pressure Range
60 - 150 PSI
Resistance
60 ± 2 Ohms (at 70°F)
Height
66.3 mm (2.61 in)
Harmonized System (HS) Code
848120
Length
86.4 mm (3.4 in)
Operating Voltage Range
9 VDC - 16 VDC
Width
98.8 mm (3.89 in)
Cautionary Note(s)
EXH must face downward/horizontal. Do not cover/paint exhaust.
Operation
Latching NC-NC (Gray)
Connector Type
Metri-Pack 150 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Supply Port 2
Open interlock stem
Supply Port 1
Open supply bore
Product Type
Stacking Manifold
Exhaust Orifice
Ø .050 IN
Inlet Orifice
Ø .050 IN
Mounting
Ø .440 IN
Weight
0.73 lb
