DESCRIPTION

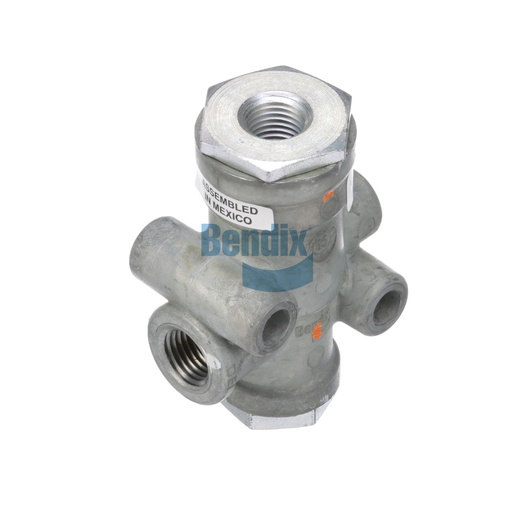

The Bendix Synchro Valve is a key part of air and hydraulic brake systems, designed to ensure precise control and synchronization between different components. Weighing only 0.3 kg, this valve is compact yet powerful, capable of operating effectively under various conditions. With a maximum operating temperature of 200 °F and a minimum of -40 °F, it is built to withstand the rigors of commercial vehicle operations. The valve features multiple ports for efficient air delivery and control, allowing for quick response times and reliable performance. Its durable construction ensures longevity, making it an essential component for fleet operators looking to maintain optimal braking performance. For genuine Bendix OEM parts that guarantee quality and reliability, Source One Parts Center is your best choice.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-011: Synchronizing Valve - Air Or Hydraulic
Control Port
1/4-18 NPT
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Exhaust Port
1/8-27 NPT
Maximum Operating Temperature
200 °F (93 °C)
Exhaust Opening Pressure (Common CON / SUP)
28 PSI
Width
35.1 mm (1.38 in)
Inlet Opening Pressure (Common CON / SUP)
42 PSI
Inlet Opening Pressure Ascending (Constant SUP / Variable CON)
53 PSI
Length
57.2 mm (2.25 in)
Height
72.9 mm (2.87 in)
Harmonized System (HS) Code
848120,848180
Country of Origin
Mexico
Mounting
Ø .28 IN (2x)
Weight
0.55 lb
