$109.95
$131.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

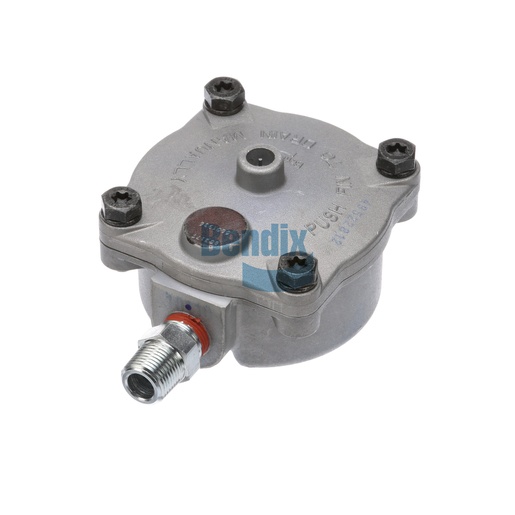

The Bendix Drain Valve is an essential part of your air brake system, designed for effective moisture management and air quality control. This automatic valve weighs 0.6 kg and features a durable design that ensures reliable operation under various conditions. Its primary function is to release accumulated moisture from the air system, preventing potential damage and enhancing the efficiency of your air brakes. The valve is easy to install and provides peace of mind by ensuring that your braking system remains in optimal condition. For the best selection of genuine Bendix OEM parts, Source One Parts Center is the ideal choice, committed to delivering quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
119.8 mm (4.72 in)
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 3/8-18 NPT (Adapter)
Height
60.7 mm (2.39 in)
Harmonized System (HS) Code
848140,848180
Width
89.7 mm (3.53 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
Pre-Applied
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1.24 lb
