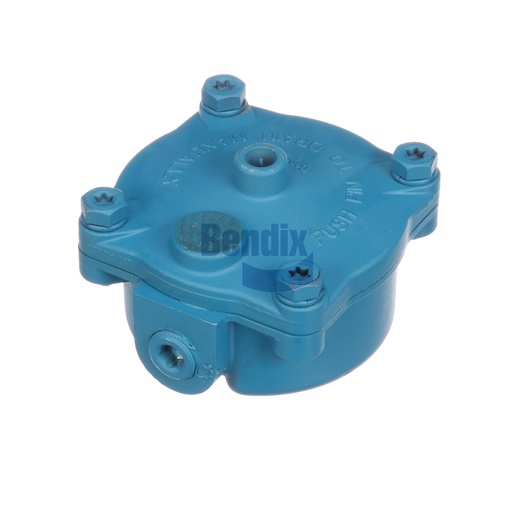

281923R
Drain Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Drain Valve is a pivotal component in ensuring the efficiency of air systems within commercial vehicles. This valve is designed to automatically expel moisture and contaminants that accumulate in the air system, thereby preventing corrosion and maintaining optimal performance. Weighing just 0.6 kg, it is lightweight yet robust, making it suitable for a variety of heavy-duty applications. This drain valve is engineered to operate effectively under extreme temperatures, with a maximum operating temperature of 100°F and a minimum of -40°F, ensuring reliability in diverse conditions. For those seeking to maintain their vehicle's air system, Source One Parts Center is the perfect destination for acquiring genuine Bendix OEM parts, providing high-quality components tailored for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 1/2-14 NPT (Adapter)
Height
67.8 mm (2.67 in)
Harmonized System (HS) Code
848120,848140
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1.21 lb
