DESCRIPTION

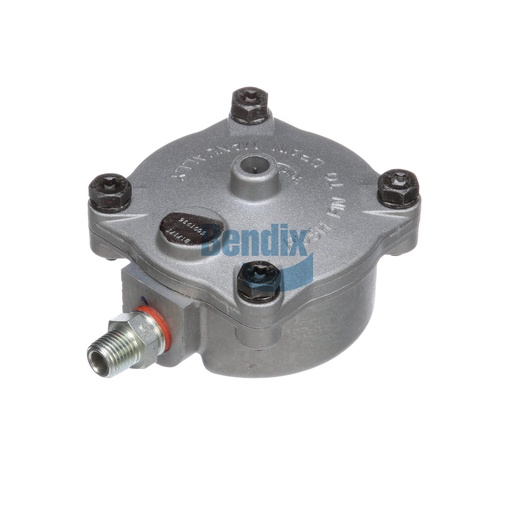

The Drain Valve from Bendix plays a crucial role in any air brake system by allowing for the efficient removal of moisture and contaminants. Designed for automatic operation, this valve helps to ensure that your braking system remains free from harmful moisture that can lead to corrosion and reduced performance. Constructed for durability, it operates effectively in extreme temperatures, ensuring reliable performance in any environment. The valve’s compact design allows for easy installation, making it a practical choice for maintenance needs. When sourcing genuine Bendix OEM parts, Source One Parts Center is the go-to destination for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Height
60.7 mm (2.39 in)
Harmonized System (HS) Code
848120,848140,848180
Width
89.7 mm (3.53 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
1.04 lb
