281924R

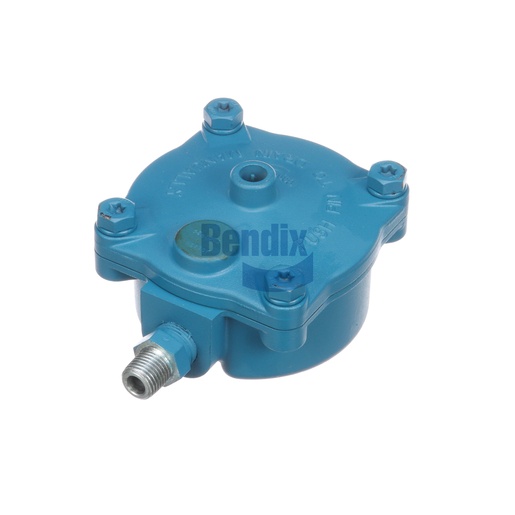

Drain Valve
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Drain Valve is an essential component for maintaining your air brake system's efficiency, designed to release moisture and contaminants that can cause damage or reduce performance. Manufactured in Mexico, this valve operates effectively across a wide temperature range, ensuring reliable performance in various conditions. Its side mount design allows for easy installation, while the integrated features promote optimal drainage and system integrity. By utilizing this drain valve, you can help extend the life of your air brake components and enhance overall safety on the road. Designed for compatibility with Bendix systems, this drain valve ensures seamless integration and reliable operation. For genuine Bendix OEM parts, Source One Parts Center is your go-to source, providing quality components you can count on.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Height
60.7 mm (2.39 in)
Harmonized System (HS) Code
848140
Width
89.7 mm (3.53 in)
Country of Origin
Mexico
Heater
No
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Weight
0.99 lb
