DESCRIPTION

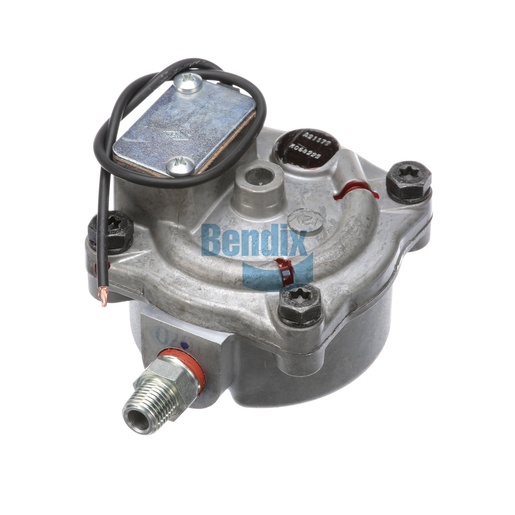

The drain valve is a crucial component in the air brake system, designed to remove moisture and contaminants from the air supply, thereby ensuring optimal performance and extending the life of the braking components. This valve features a robust construction that allows for automatic drainage, helping to maintain air quality within the system. With a maximum operating temperature of 100°F and a minimum of -40°F, it is engineered to perform reliably in various environmental conditions. The drain valve's side mount design facilitates easy installation, making it a practical choice for maintenance. By ensuring that only clean, dry air enters the braking system, this valve contributes significantly to the overall safety and efficiency of commercial vehicles. Source One Parts Center is the best place to purchase genuine Bendix OEM parts like this drain valve, ensuring quality and reliability.
SPECIFICATIONS
Connector Type
#14 GA Hypalon Insulated (No Connector)
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
11.00 IN
Length
114.6 mm (4.51 in)
Heater Rating
12V
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Heater Orientation (CW from SUP Port)
90°
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.21 lb
