$224.95
$269.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

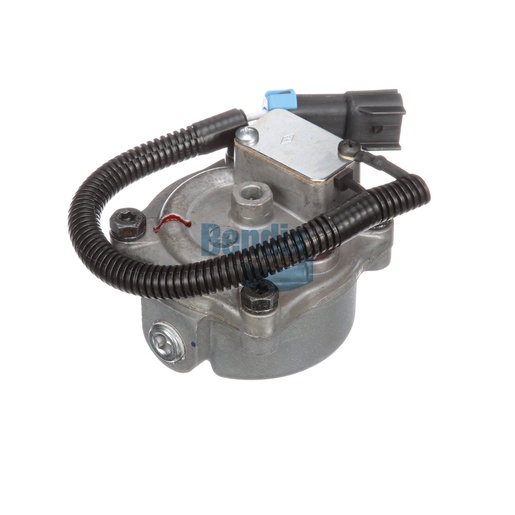

The Drain Valve from Bendix is a critical component designed to enhance the efficiency of your vehicle's air braking system. This valve effectively removes moisture and contaminants from the air system, ensuring optimal performance and preventing potential damage to critical braking components. Built with durability in mind, the Drain Valve operates seamlessly under various environmental conditions, providing long-lasting reliability. Its top-mounted design allows for easy installation and maintenance, making it a convenient choice for fleet operators. By ensuring that the air system remains free from moisture, this drain valve contributes to the overall safety and effectiveness of your braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you have the right components to keep your commercial vehicle running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Length
114.6 mm (4.51 in)
Heater Rating
12V
Harness Length
13.50 IN
Heater Orientation (CW from SUP Port)
180°
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 1/4-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.5 lb
