$259.95
$311.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

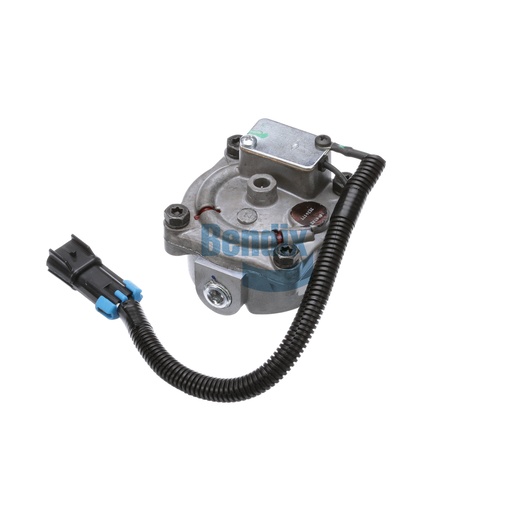

The Bendix Drain Valve is a critical component for maintaining the efficiency of your air system, designed to effectively manage moisture and contaminants within the system. This automatic drain valve features a robust construction that allows it to operate reliably under various conditions, ensuring that your air system remains free from harmful moisture buildup. With a compact design and a net weight of just 0.7 kg, it is easy to install and integrate into your existing setup. The drain valve operates at a maximum temperature of 100 °F and can withstand pressures of up to 200 PSI, making it suitable for demanding commercial applications. This valve is essential for prolonging the life of your air system components and maintaining optimal performance. Source One Parts Center is your go-to destination for authentic Bendix OEM parts, guaranteeing that you receive high-quality components that enhance the reliability and efficiency of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
12.00 IN
Heater Rating
12V
Heater Orientation (CW from SUP Port)
180°
Supply Port (Side)
3/8-18 NPT (Plugged)
Supply Port (Top)
3/8-18 NPT x 3/8-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
83.6 mm (3.29 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Length
93.3 mm (3.68 in)
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Top Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.56 lb
