$244.95
$293.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

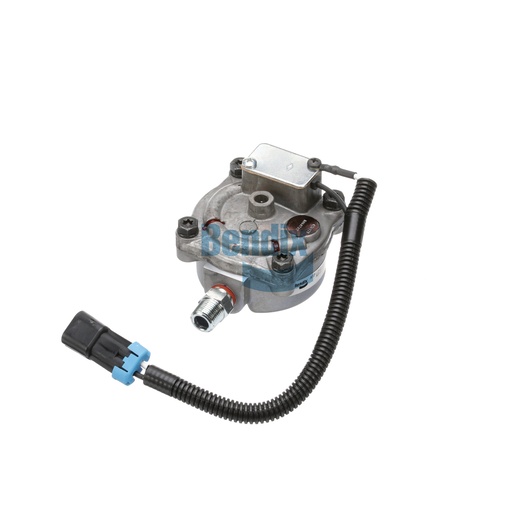

The Drain Valve is a vital component in maintaining the integrity of your truck's air brake system. This automatic drain valve effectively expels moisture and contaminants from the air system, preventing corrosion and ensuring optimal performance. Designed for reliability, it features a built-in heater to operate efficiently in extreme temperatures, enhancing its functionality in cold weather conditions. The valve is easy to install and maintain, making it an excellent choice for fleet managers aiming to minimize downtime. Its robust construction guarantees longevity, ensuring that your air brake system remains in peak condition. Source One Parts Center is your best choice for genuine Bendix OEM parts, providing you with the quality and reliability you need for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-193: Drain Valve - Automatic
Maximum Operating Temperature
100 °F (38 °C)
Harness Length
12.00 IN
Length
121.0 mm (4.77 in)
Heater Rating
12V
Heater Orientation (CW from SUP Port)
180°
Supply Port (Top)
3/8-18 NPT (Plugged)
Supply Port (Side)
3/8-18 NPT x 3/8-18 NPT (Adapter)
Heater ON Setting (Cut-in)
45° ± 10° F
Height
71.9 mm (2.83 in)
Harmonized System (HS) Code
848140,848180
Heater OFF Setting (Cut-out)
85° ± 10° F
Width
89.7 mm (3.53 in)
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Thread Sealant
No Sealant
Mounting
Side Mount
Cautionary Note(s)
When mounted, the exhaust must point down toward the road
Heater
Yes
Weight
1.51 lb
