DESCRIPTION

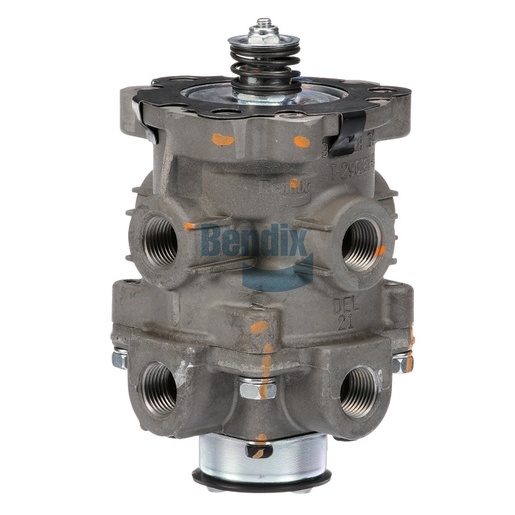

The Foot Brake Valve from Bendix is a vital component that allows for precise control of braking in commercial vehicles. This valve is engineered to provide reliable performance, ensuring that your brakes engage smoothly and effectively. Its robust design is built to withstand the demanding conditions of heavy-duty applications, while its lightweight structure of only 1.0 kg ensures easy installation and maintenance. Regular checks and timely replacements of the foot brake valve are essential for maintaining optimal braking performance and safety on the road. When looking for genuine Bendix OEM parts, including the Foot Brake Valve, Source One Parts Center is your trusted source for quality commercial truck components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120,848180
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.13 lb
