DESCRIPTION

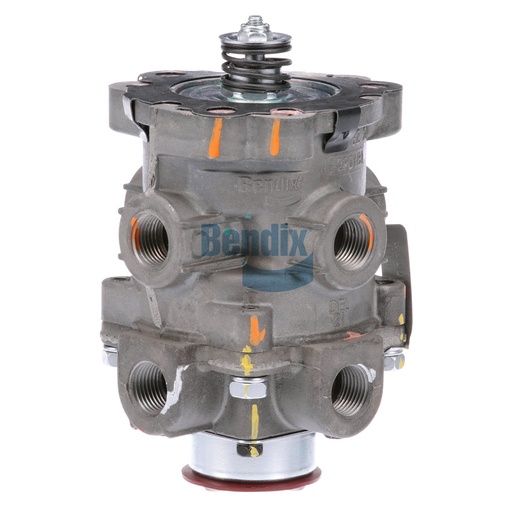

Improve your braking system's response with the Bendix Foot Brake Valve, a key component designed for effective air control in commercial vehicles. This valve features advanced engineering that allows for precise modulation of air pressure, ensuring smooth and efficient braking performance. With a maximum operating temperature of 221°F and a minimum of -40°F, it is built to endure extreme conditions. The valve is lightweight, weighing only 1.1 kg, making it easy to install and maintain. It conforms to OEM specifications, ensuring compatibility and reliability across different vehicle types. For those seeking genuine Bendix OEM parts, Source One Parts Center is the leading choice, offering high-quality components that enhance vehicle performance and safety.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Height
141.7 mm (5.58 in)
Maximum Operating Temperature
221 °F (105 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Length
88.1 mm (3.47 in)
Width
88.1 mm (3.47 in)
Port Configuration
Axial / Perpendicular
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Waterproof
No
Graduation Spring Style
Rubber Spring
Weight
2.47 lb
