DESCRIPTION

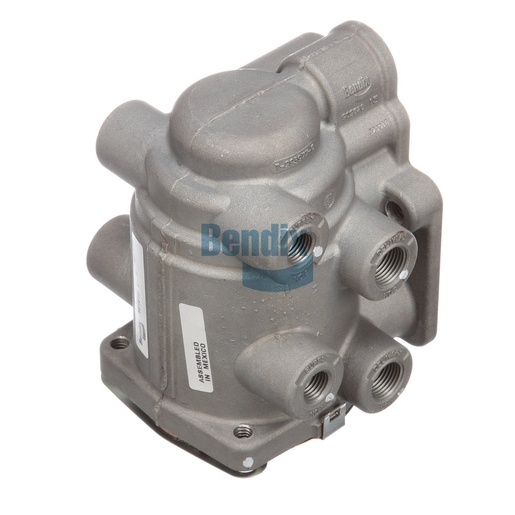

The Bendix Foot Brake Valve is an essential part of your commercial vehicle's braking system, designed for precise control and safety during operation. This valve allows for smooth modulation of brake pressure, enabling drivers to maintain optimal control while operating heavy vehicles. Weighing only 1.7 kg (3.64 lb), its compact design does not compromise on performance, making it an efficient addition to your air brake system. It features a dual application design, which ensures that it meets the demands of various braking conditions, providing consistent and reliable performance. The Foot Brake Valve is crafted to comply with strict regulatory standards, making it a trustworthy choice for fleet managers focused on safety and efficiency. By incorporating this valve into your braking system, you enhance responsiveness and stability, crucial for maintaining control in emergency situations. When it comes to purchasing genuine Bendix OEM parts, Source One Parts Center stands out as the premier destination for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Supply (11) Port 1
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 1
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Width
103.0 mm (4.06 in)
Length
111.0 mm (4.37 in)
Height
150.0 mm (5.91 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120,848190
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.64 lb
