$549.95
$659.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

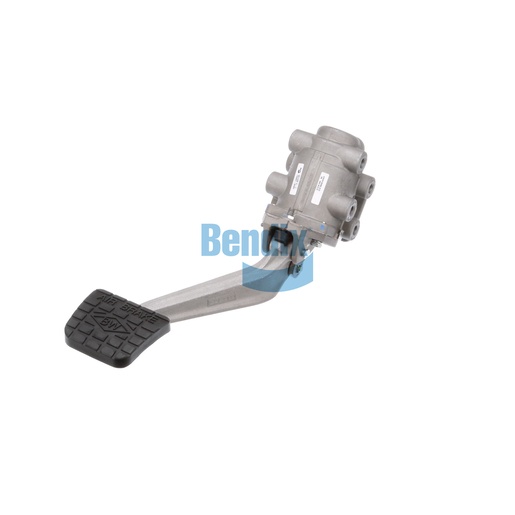

The Foot Brake Valve is designed to deliver precise braking control for commercial vehicles, ensuring that drivers can effectively manage brake engagement under varying conditions. This valve features a durable construction, capable of withstanding harsh environments, and operates efficiently at temperatures ranging from -40 °F to 200 °F. With a net weight of 2.8 kg, it strikes a balance between strength and manageability, facilitating quick installation and maintenance. The Foot Brake Valve ensures a reliable connection within the braking system, enhancing both safety and performance on the road. For high-quality, reliable parts, Source One Parts Center is the premier choice for genuine Bendix OEM components, providing everything you need to maintain your commercial vehicles effectively.
SPECIFICATIONS
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Pedal Length (from Pivot)
10.75 IN
Pedal Length (Overall)
11.52 IN
Total Pedal Travel
17°
Differential Pressure
3.0 PSI
Pedal Offset
3.25 IN (Left)
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery (21) Port 1
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Initial Pedal Angle
55°
Harmonized System (HS) Code
848120
Pedal Material
Cast Aluminum
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Plunger Material
Steel
Pedal Style
Suspended (Pedal)
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Weight
6.24 lb
