$329.95
$395.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

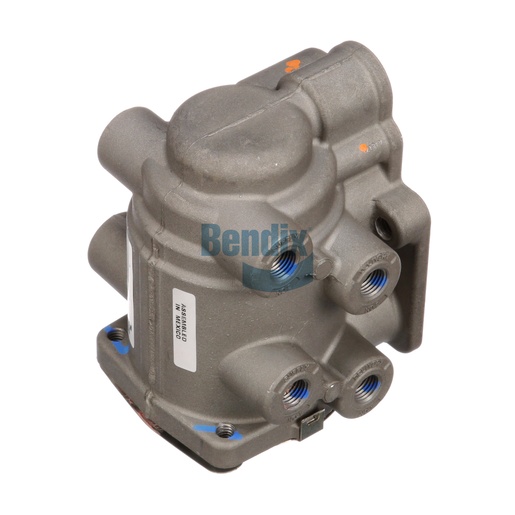

The Foot Brake Valve from Bendix is a vital component that ensures effective control over your vehicle's braking system. Designed for durability and precision, this valve allows for smooth operation and quick response times, which are essential for safe driving. With a net weight of 1.7 kg, it is robust enough to handle the demands of commercial use while maintaining high performance standards. The Foot Brake Valve is engineered to operate efficiently across a wide range of conditions, making it suitable for various applications. Regular checks and timely replacements can help maintain optimal braking performance and enhance safety. For sourcing high-quality Bendix OEM parts, Source One Parts Center is the best place to find reliable solutions.
SPECIFICATIONS
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 3
1/2-14 NPT
Delivery (22) Port 3
1/2-14 NPT
Supply (11) Port 3
1/2-14 NPT
Supply (12) Port 3
1/2-14 NPT
Delivery (21) Port 2
1/4-18 NPT
Delivery (22) Port 2
1/4-18 NPT
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
102.9 mm (4.05 in)
Width
110.7 mm (4.36 in)
Height
147.3 mm (5.8 in)
Differential Pressure
3.0 PSI
Mounting (Vehicle)
3/8-16 UNC-3B (3x)
Delivery (21) Port 1
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Manifold Included
No
Mounting Plate Included
No
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Weight
3.64 lb
