DESCRIPTION

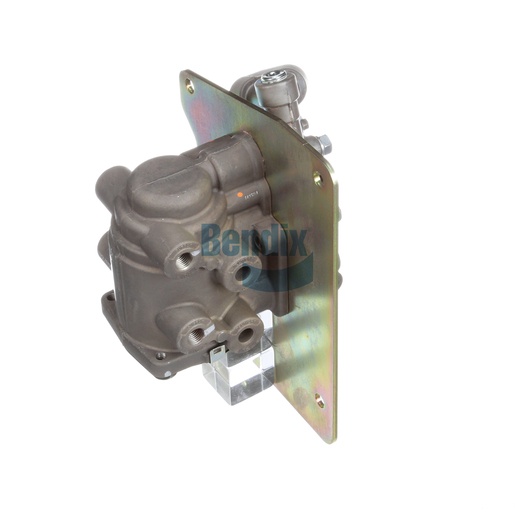

The Bendix foot brake valve is a vital component of the air braking system in commercial vehicles, allowing for precise control of braking functions. This valve is designed to withstand harsh conditions, with a maximum operating temperature of 200°F and a robust construction that ensures durability and reliability. The foot-operated design provides seamless integration into your vehicle's braking system, ensuring a responsive and smooth braking experience. With a net weight of 3.7 kg, it is manageable for installation and maintenance. By using this high-quality valve, you can enhance the safety and performance of your braking system. For authentic Bendix OEM parts, Source One Parts Center is your best choice, guaranteeing quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Supply (11) Port 2
1/4-18 NPT
Supply (12) Port 2
1/4-18 NPT
Supply (12) Port 4
1/8-27 NPT
Length
182.9 mm (7.2 in)
Width
184.2 mm (7.25 in)
Maximum Operating Temperature
200 °F (93 °C)
Height
238.0 mm (9.37 in)
Differential Pressure
3.0 PSI
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Delivery (21) Port 1
Cored Closed
Delivery (21) Port 2
Cored Closed
Delivery (22) Port 1
Cored Closed
Delivery (22) Port 2
Cored Closed
Supply (11) Port 1
Cored Closed
Supply (12) Port 1
Cored Closed
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
Pedal Included
No
Rubber Boot Included
No
Waterproof
No
Delivery (21) Port 3
Open Port
Delivery (22) Port 3
Open Port
Supply (11) Port 3
Open Port
Supply (12) Port 3
Open Port
Graduation Spring Style
Rubber
Port Configuration
Side / Rear
Manifold Included
Yes
Mounting Plate Included
Yes
Mounting (Vehicle)
Ø .420 IN (4x)
Weight
8.05 lb
