DESCRIPTION

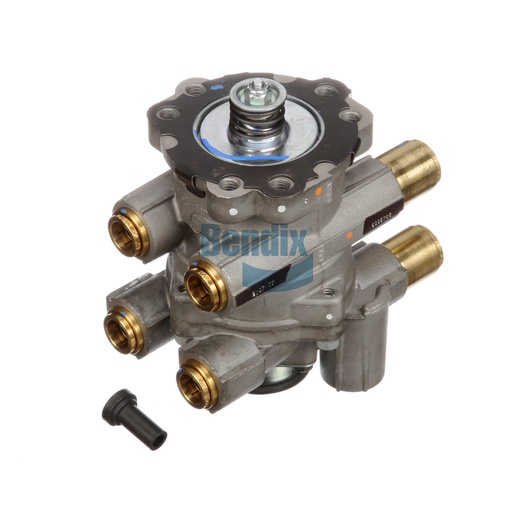

The Foot Brake Valve is a crucial component in your vehicle's air braking system, designed to provide optimal control and responsiveness when operating your brakes. This high-quality valve is engineered for maximum durability and performance, ensuring that your braking system functions reliably, even under demanding conditions. With its precise design, it enables smooth operation of the braking system, enhancing safety and performance on the road. The Foot Brake Valve features an intuitive design that simplifies installation and maintenance, allowing for quick replacements to minimize downtime. By integrating this valve into your braking system, you can ensure consistent brake performance and improve overall safety. For authentic Bendix OEM parts, Source One Parts Center is your best choice, ensuring you receive reliable components that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Delivery (21) Port 1
1/2 PTC
Delivery (22) Port 1
1/2 PTC
Supply (11) Port 1
1/2 PTC
Supply (12) Port 1
1/2 PTC
Length
110.5 mm (4.35 in)
Height
141.5 mm (5.57 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 2
3/8 PTC
Delivery (22) Port 2
3/8 PTC
Auxiliary Supply Port
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Supply (11) Port 2
5/8 PTC
Supply (12) Port 2
5/8 PTC
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
3.02 lb
