DESCRIPTION

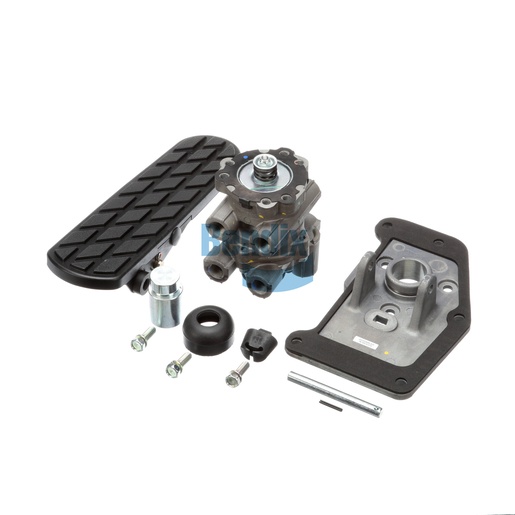

The Foot Brake Valve is a critical component in the braking system, offering reliable operation for foot-operated braking mechanisms. Originating from Mexico, this valve is designed with precision to ensure optimal performance and safety in commercial vehicles. The valve features a robust construction, with a net weight of 3.0 kg (6.55 lb), making it suitable for heavy-duty applications. Its design allows for easy installation and precise control, ensuring that braking is smooth and responsive. The valve is also built to endure harsh conditions, optimizing its lifespan and reliability. By using high-quality components like this foot brake valve, you can significantly enhance the safety and efficiency of your vehicle's braking system. Source One Parts Center is your top destination for genuine Bendix OEM parts, providing the quality and reliability you need for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Pedal Length (Overall)
10.94 IN
Maximum Operating Temperature
200 °F (93 °C)
Length
281.8 mm (11.09 in)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Height
39.6 mm (1.56 in)
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Pedal Length (from Pivot)
8.97 IN
Harmonized System (HS) Code
848120
Width
90.4 mm (3.56 in)
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Pedal Style
Floor (Treadle)
Country of Origin
Mexico
BVA-85 Included
No
Retarder Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Pedal Material
Steel
Plunger Material
Steel
Mounting Plate Included
Yes
Pedal Included
Yes
Pedal Pad Included
Yes
Rubber Boot Included
Yes
Mounting (Vehicle)
Ø .41 IN (2x)
Weight
6.55 lb
