K105817

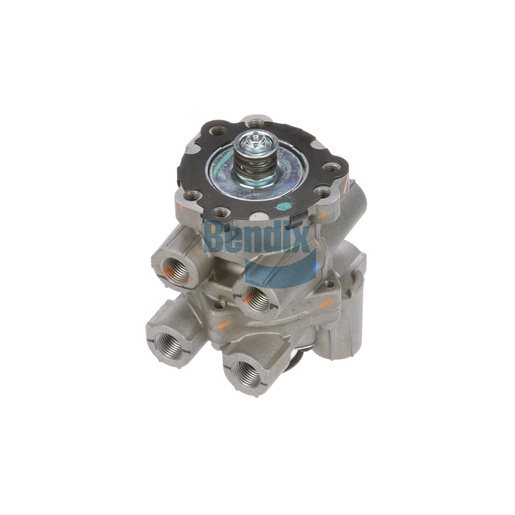

Foot Brake Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Foot Brake Valve is an essential component for controlling braking systems in heavy-duty vehicles, providing precise modulation of air pressure to the brakes. Designed with advanced engineering, this valve ensures consistent and reliable performance, crucial for safe operation under heavy loads. Its compact design and thoughtful construction allow for easy integration into existing systems, making it ideal for both new installations and replacements. With features that enhance durability and reliability, this foot brake valve is engineered to withstand the demanding conditions of commercial transport. For those in search of authentic Bendix OEM parts, Source One Parts Center is the trusted destination for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-051: Application Valve - Dual
Length
101.6 mm (4.0 in)
Height
141.5 mm (5.57 in)
Maximum Operating Temperature
200 °F (93 °C)
Differential Pressure
3.0 PSI
Delivery (21) Port 1
3/8-18 NPT
Delivery (21) Port 2
3/8-18 NPT
Delivery (22) Port 1
3/8-18 NPT
Delivery (22) Port 2
3/8-18 NPT
Supply (11) Port 1
3/8-18 NPT
Supply (11) Port 2
3/8-18 NPT
Supply (12) Port 1
3/8-18 NPT
Supply (12) Port 2
3/8-18 NPT
Mounting (Valve Body)
5/16-18 UNC-3B (3x)
Harmonized System (HS) Code
848120
Width
91.4 mm (3.6 in)
Auxiliary Supply Port
Closed Port
Exhaust Port
Dust Shield
Regulatory Compliance
FMVSS 121
Country of Origin
Mexico
BVA-85 Included
No
Mounting Plate Included
No
Pedal Included
No
Retarder Included
No
Rubber Boot Included
No
Waterproof
No
Port Configuration
Parallel
Graduation Spring Style
Rubber Spring
Weight
2.68 lb
