DESCRIPTION

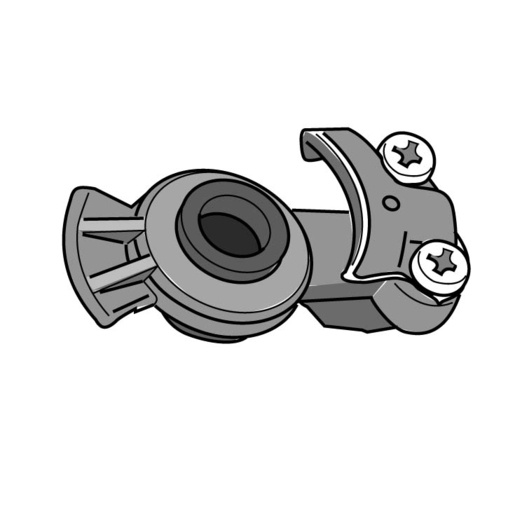

The Bendix Coupling Head is an essential component for your vehicle’s air brake system, designed to provide secure connections between hoses and ensure efficient air flow. With a compact design and weighing only 0.2 kg, this coupling head is crafted for durability and reliability, suitable for use in challenging environments. Its locking feature enhances safety during operation, while its compatibility with industry standards ensures it can be integrated seamlessly into existing systems. For those looking to purchase genuine Bendix OEM parts, Source One Parts Center is the best choice, providing high-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Port Size
1/2-14 NPT
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Width
52.2 mm (2.06 in)
Height
53.1 mm (2.09 in)
Harmonized System (HS) Code
848120
Identification
Control
Filter Screen
No
Industry Standard
SAE J318
Country of Origin
United States
Locking Feature
Yes
Weight
0.45 lb
