278851

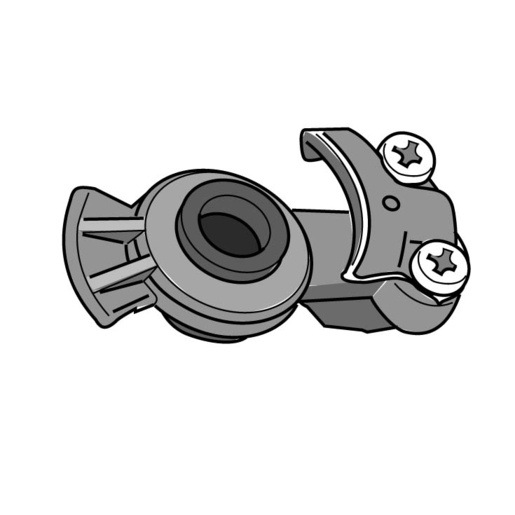

Coupling Head
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$45.95
$55.14
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix coupling head is a critical component in your commercial vehicle’s air brake system, designed to facilitate secure connections between air hoses. Constructed from high-quality materials, this coupling head ensures durability and reliable operation, making it suitable for heavy-duty applications. With an industry-standard port size of 1/2-14 NPT, it provides compatibility with a range of air brake systems. This component is essential for maintaining optimal air pressure and ensuring the safety of your braking system. For those who prioritize quality and reliability, the Bendix coupling head is an excellent choice. Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring you have the best components for your truck.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-032: Coupler (Gladhand) - Emergency, Air Brakes
Port Size
1/2-14 NPT
Length
108.7 mm (4.28 in)
Maximum Operating Temperature
158 °F (70 °C)
Width
52.2 mm (2.06 in)
Height
53.1 mm (2.09 in)
Harmonized System (HS) Code
848120
Filter Screen
No
Locking Feature
No
Industry Standard
SAE J318
Identification
Supply
Country of Origin
United States
Weight
0.45 lb
