$129.95
$155.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

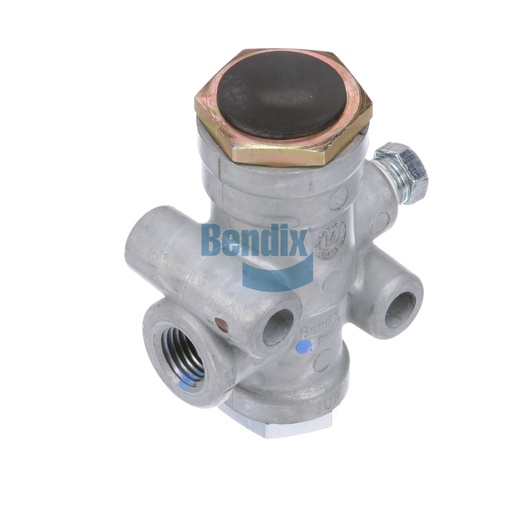

The Bendix Pressure Reducing Valve is engineered to maintain consistent air pressure within the braking system, preventing over-pressurization that could lead to brake failure. This non-adjustable valve is built to stringent specifications, ensuring reliable operation across a wide range of temperatures and conditions. With a maximum operating temperature of 200 °F, it is designed to perform reliably in demanding environments. Its compact design makes installation straightforward, allowing for quick replacements during maintenance. For fleet operators and mechanics seeking high-quality components, Source One Parts Center is the premier choice for genuine Bendix OEM parts, ensuring safety and performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Width
35.1 mm (1.38 in)
Length
58.2 mm (2.29 in)
Height
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Delivery Pressure
85 PSI
Exhaust Port
Dust Shield
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.6 lb
