$154.95
$185.94
FINAL SALE. No returns or exchanges.

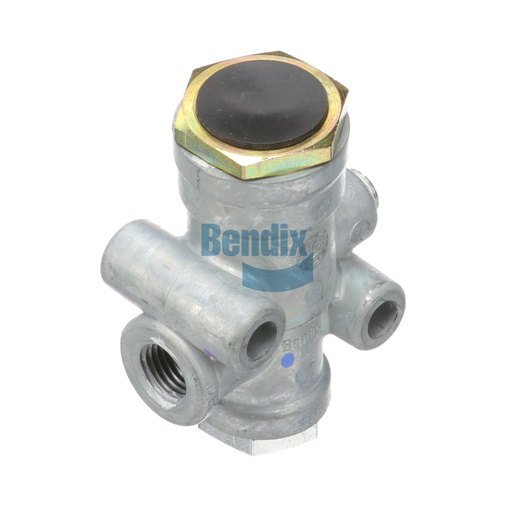

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Pressure Reducing Valve is a key component in maintaining optimal brake system pressure, ensuring that your vehicle's braking capabilities are both safe and effective. This non-adjustable valve is pre-set to deliver a consistent pressure range of 35 to 39 PSI, making it crucial for the proper functioning of air brakes in commercial vehicles. Designed with durable materials, this valve can withstand extreme temperatures ranging from -40°F to 200°F, ensuring reliable performance in any environment. With its compact dimensions and lightweight design—at just 0.3 kg—it is easy to install and integrate into your existing braking system. The valve features multiple ports for versatile installation options, making it suitable for a variety of applications. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center stands out as your trusted supplier, committed to providing only the best for your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-010: Limiter Valve - Air
Delivery Port 1
1/4-18 NPT
Supply Port
1/4-18 NPT
Control Port
1/8-27 NPT (Plugged)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Pressure
35 - 39 PSI
Width
35.1 mm (1.38 in)
Length
50.0 mm (1.97 in)
Height
75.2 mm (2.96 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield
Country of Origin
Mexico
Product Type
Non-Adjustable (Pre-Set)
Mounting
Ø .28 IN (2x)
Weight
0.62 lb
