286500R
Pressure Protection Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

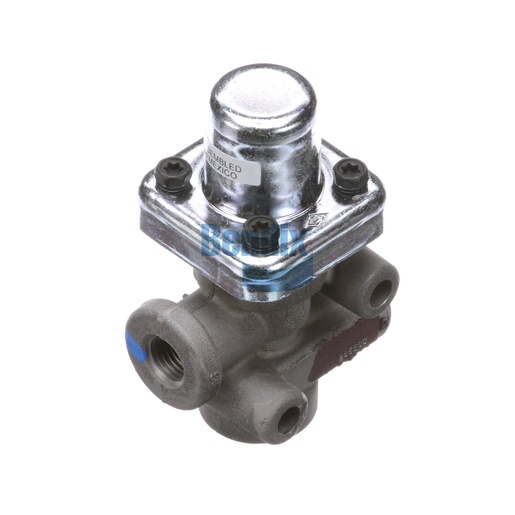

The Bendix Pressure Protection Valve is essential for maintaining optimal performance in air brake systems. This non-adjustable valve is designed to prevent pressure loss, ensuring that your vehicle's braking system remains fully operational under all conditions. Weighing only 0.3 kg (0.68 lb), its compact design offers efficient installation without compromising on performance. With a closing pressure of 85 ± 5 PSI, this valve guarantees reliable functionality, crucial for the safety of commercial vehicles. The Bendix Pressure Protection Valve is built to withstand extreme temperatures ranging from -40°F to 200°F, making it suitable for diverse operational environments. For fleet managers seeking to enhance their braking systems, Source One Parts Center is the best choice for sourcing authentic Bendix OEM parts that ensure quality and dependability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-044: Pressure Protection Valve - Air Brake System
Delivery Port
1/4-18 NPT
Supply Port
1/4-18 NPT
Maximum Operating Temperature
200 °F (93 °C)
Width
47.8 mm (1.88 in)
Length
63.5 mm (2.5 in)
Harmonized System (HS) Code
848120
Closing Pressure
85 ± 5 PSI
Height
96.8 mm (3.81 in)
Country of Origin
Mexico
With Delivery Check Valve
No
Product Type
Non-Adjustable
Mounting
Ø .280 IN (2x)
Weight
0.68 lb
