$40.95
$49.14
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

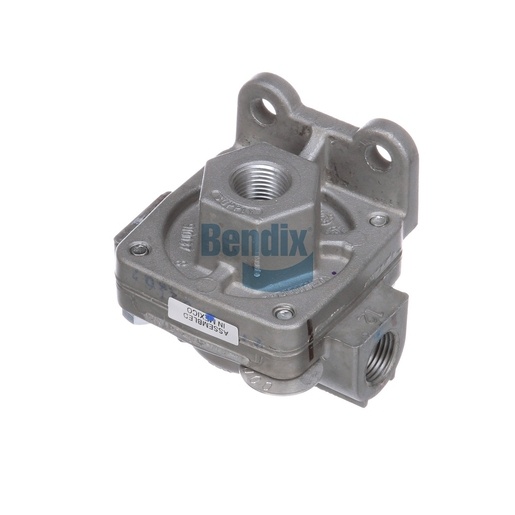

The Quick Release Valve from Bendix is a critical component in the air brake system of commercial vehicles, designed to enhance the efficiency and responsiveness of the braking system. Weighing just 0.3 kg, this valve features a compact design that facilitates rapid air release, contributing to quicker brake response times and improved overall vehicle safety. Its robust construction ensures durability under high-pressure conditions, making it suitable for heavy-duty applications. This valve is essential for maintaining optimal air pressure levels within the braking system, helping to prevent brake lag. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring you receive high-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.74 lb
