This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

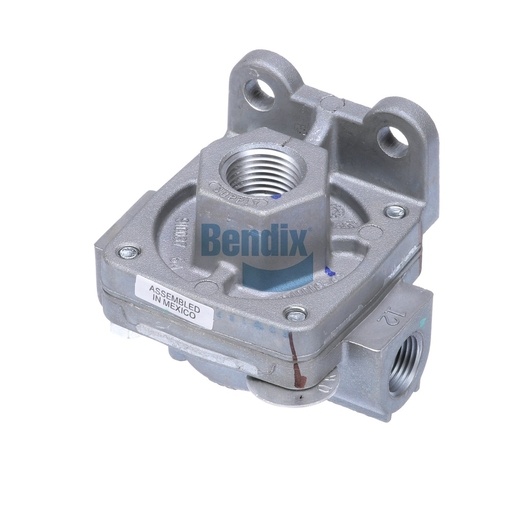

The Bendix Quick Release Valve is a vital component designed to enhance the efficiency of air brake systems in commercial vehicles. This valve, with a net weight of 0.4 kg, is engineered for quick air release, improving the responsiveness of the braking system. Manufactured in Mexico and India, it adheres to Bendix's rigorous quality standards, ensuring reliable operation even under demanding conditions. The valve's design facilitates rapid exhaust of air pressure, contributing to improved braking performance and reduced stopping distances. By choosing genuine Bendix parts, you ensure your braking system operates at peak efficiency, enhancing safety on the road. For authentic Bendix OEM parts, Source One Parts Center is your best source, dedicated to providing high-quality solutions for your fleet.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico, India
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.81 lb
