229860R

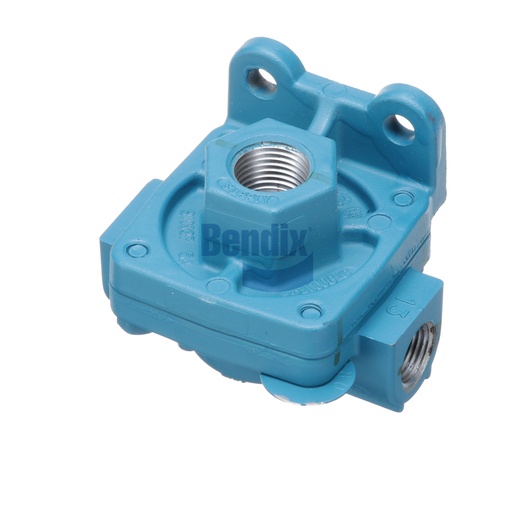

Quick Release Valve
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Quick Release Valve is an essential part of your air brake system, designed to facilitate rapid release of air pressure, enhancing the responsiveness and efficiency of your braking system. Weighing only 0.3 kg, this valve is engineered for durability and reliable performance in demanding conditions. Its innovative design allows for quick air release, which is crucial for maintaining optimal brake function and reducing wear on brake components. This valve is particularly beneficial in applications where quick braking response is vital, ensuring the safety and performance of your commercial vehicle. Upgrading to a quality quick release valve is essential for any fleet operator looking to enhance their braking system. For genuine Bendix OEM parts, Source One Parts Center is your ultimate source for quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
63.8 mm (2.51 in)
Length
68.3 mm (2.69 in)
Width
82.3 mm (3.24 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Foam Insert Included
No
Sustained Hold
No
Exhaust Port
Open
TMC Washer
QR000
Zero Hysteresis
Yes
Mounting
Ø .34 IN (2x)
Weight
0.68 lb
