$31.95
$38.34
Minimum Quantity 5
FINAL SALE. No returns or exchanges.

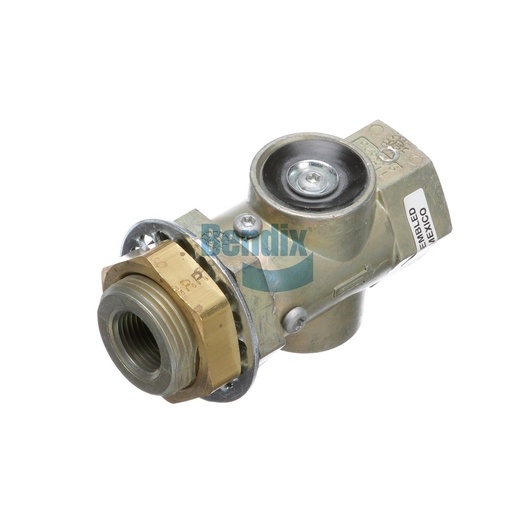

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Quick Release Valve is a critical component designed to enhance the efficiency and performance of air brake systems in commercial vehicles. This valve facilitates the rapid release of air from the brake chambers, significantly reducing brake lag and ensuring quicker response times during operation. Its innovative design features a zero hysteresis mechanism, allowing for precise control and consistent performance under varying conditions. Built from high-quality materials, it operates effectively in extreme temperatures, ranging from -50°F to 200°F, making it reliable for diverse climates. The quick release valve is engineered for easy installation with a bulkhead mounting design, ensuring a snug fit that minimizes air leaks and enhances overall safety. This part is an essential upgrade for any fleet aiming to improve braking efficiency and safety. When it comes to sourcing genuine Bendix OEM parts for your commercial vehicles, Source One Parts Center stands out as the best choice, offering a vast selection and exceptional support for your needs.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Differential Pressure
0 PSI
VMRS
013-010-008: Quick Release Valve - Air Brake
Mounting
1 1/8-14 UNS-2A (Bulkhead)
Delivery Port 1
1/2-14 NPT (Female)
Maximum Operating Temperature
200 °F (93 °C)
Supply Port
3/8-18 NPT (Female)
Height
38.1 mm (1.5 in)
Width
43.4 mm (1.71 in)
Length
82.8 mm (3.26 in)
Harmonized System (HS) Code
848120
Exhaust Port
Dust Shield (2x)
Country of Origin
Mexico
Sustained Hold
No
Zero Hysteresis
Yes
Weight
0.97 lb
