DESCRIPTION

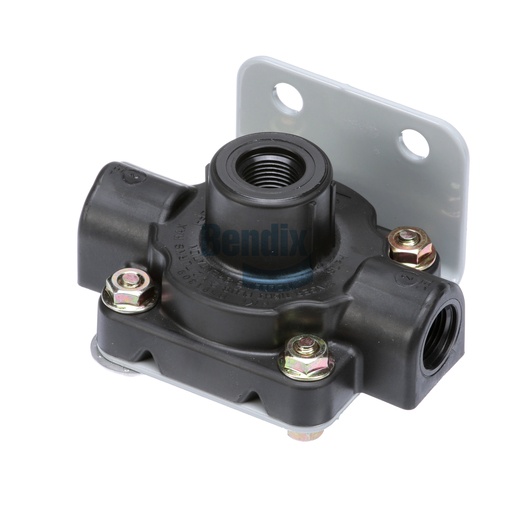

The Bendix Quick Release Valve is an essential component for your air brake system, designed to enhance the efficiency of air distribution and improve brake responsiveness. This valve plays a crucial role in releasing air quickly, which is vital for proper brake function, especially in emergency situations. With a robust construction and high-quality materials, this valve is built to withstand the demands of heavy-duty applications. Its design allows for easy installation and reliable operation, ensuring your vehicle maintains optimal braking performance. Whether you're a fleet operator or a mechanic, having this quick-release valve in your inventory is a smart choice for maintaining vehicle safety. For authentic Bendix OEM parts, Source One Parts Center is your best option, offering quality you can trust.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Width
101.6 mm (4.0 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
58.2 mm (2.29 in)
Length
76.7 mm (3.02 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Sustained Hold
Yes
Mounting
Ø .34 IN (2x)
Weight
0.84 lb
