DESCRIPTION

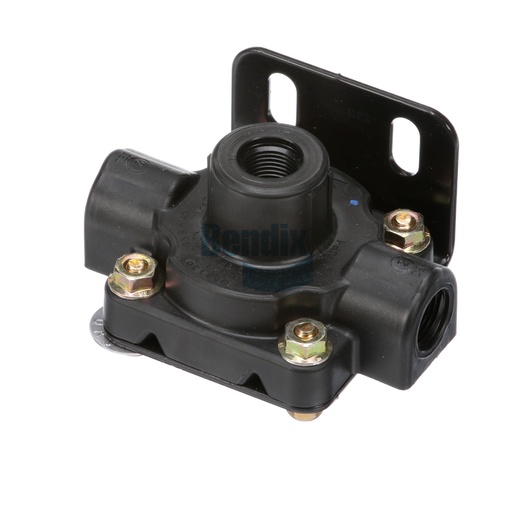

The Quick Release Valve is a critical component of the air brake system, designed to enhance the efficiency of your vehicle's braking operations. This valve facilitates quick release of air pressure, ensuring that your brakes disengage rapidly for improved control and responsiveness. With a compact size and lightweight design, measuring just 101.6 mm in width and height, it fits seamlessly into your existing system for easy installation. Its robust construction allows for operation in temperatures ranging from -50°F to 200°F, ensuring reliable performance in various conditions. This valve is essential for preventing brake drag and maintaining optimal braking power, making it a must-have for any commercial vehicle. For genuine Bendix OEM parts, Source One Parts Center is the ideal destination, providing the quality and reliability you need for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Mounting
.34 IN X .75 IN Slot (2x)
VMRS
013-010-008: Quick Release Valve - Air Brake
Differential Pressure
1 PSI MAX
Width
101.6 mm (4.0 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Supply Port
3/8-18 NPT (Female)
Height
58.2 mm (2.29 in)
Length
76.7 mm (3.02 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR010
Sustained Hold
Yes
Weight
0.84 lb
