DESCRIPTION

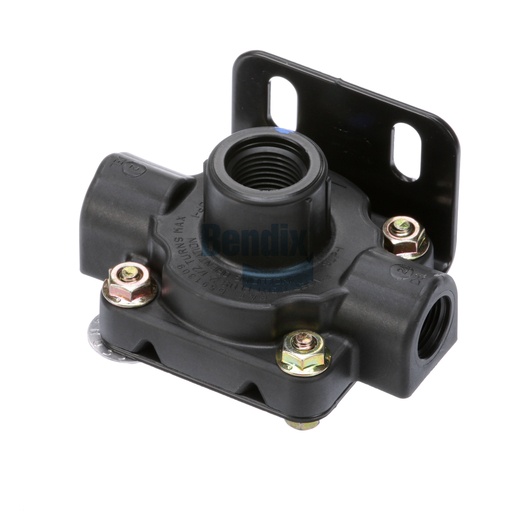

The Quick Release Valve is an essential part of your air braking system, designed to optimize the release of air pressure. This high-performance valve ensures that your braking system can respond rapidly, improving safety and efficiency when stopping. Built with durability in mind, it withstands the demands of heavy-duty applications, ensuring reliable operation over time. The Quick Release Valve features a compact design for easy installation and maintenance, allowing for quick replacements that minimize downtime. By integrating this valve into your system, you can enhance the responsiveness of your brakes, which is crucial for safety on the road. For high-quality genuine Bendix OEM parts, Source One Parts Center is your top choice, offering authentic components that meet the highest industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-50 °F (-45 °C)
Mounting
.34 IN X .75 IN Slot (2x)
VMRS
013-010-008: Quick Release Valve - Air Brake
Supply Port
1/2-14 NPT (Female)
Width
101.6 mm (4.0 in)
Differential Pressure
2 - 4.5 PSI
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 1
3/8-18 NPT (Female)
Delivery Port 2
3/8-18 NPT (Female)
Height
58.2 mm (2.29 in)
Length
76.7 mm (3.02 in)
Harmonized System (HS) Code
848120
Country of Origin
Mexico
Zero Hysteresis
No
Exhaust Port
Open
TMC Washer
QR033
Sustained Hold
Yes
Weight
0.9 lb
