$289.95
$347.94

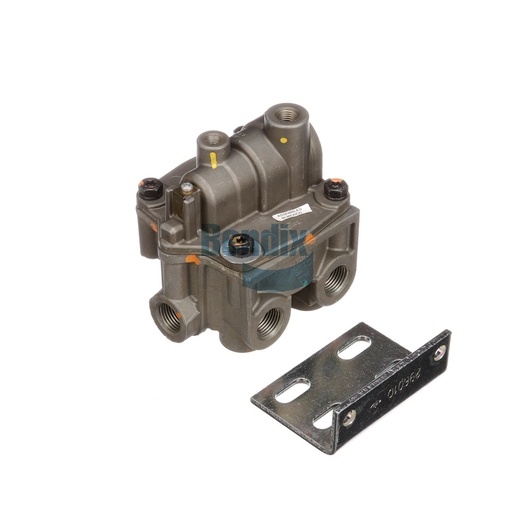

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Pressure Proportioning Valve by Bendix is designed to optimize braking performance by ensuring the correct distribution of air pressure across the braking system. This valve is essential for maintaining balance and control, especially under heavy loads, enhancing safety and stability during operation. With its durable construction, the valve is made to withstand the rigorous demands of commercial trucking, providing long-lasting performance. Its straightforward installation process means minimal downtime, allowing for quick replacements and maintenance. The Pressure Proportioning Valve contributes to the overall efficiency of your braking system, making it a smart choice for fleet operators. For the best selection of genuine Bendix parts, Source One Parts Center is your trusted supplier, offering authentic components that meet high industry standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
0.40 IN x 0.96 IN Slot (4x)
VMRS
013-010-476: Proportioning Valve - Bobtail
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Control Port
1/8-27 NPT
Width
101.1 mm (3.98 in)
Length
113.8 mm (4.48 in)
Height
137.4 mm (5.41 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Mounting Bracket Direction
Bracket loose in box
Mounting Bracket Location
Bracket loose in box
Mounting Orientation (CW from Front Face)
Bracket loose in box
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Weight
3.24 lb
