$309.95
$371.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

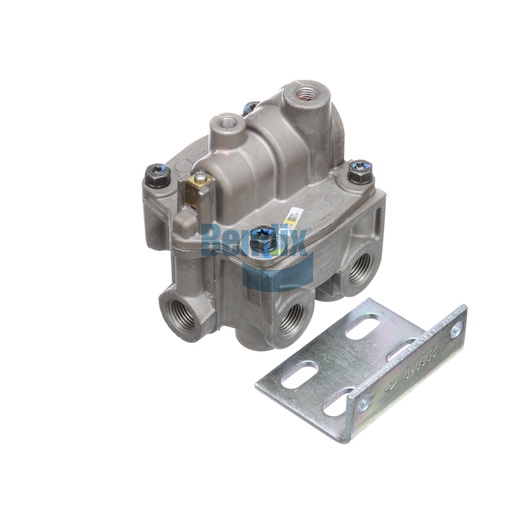

Optimize your braking system's performance with the Bendix Pressure Proportioning Valve, expertly designed to ensure that air pressure is distributed evenly across your vehicle's braking components. This reliable valve features a robust design that maintains optimal pressure levels, enhancing the responsiveness of your braking system. It is engineered for heavy-duty applications, with a maximum operating temperature of 200°F and a minimum of -40°F, ensuring reliability in extreme conditions. Weighing just 1.5 kg, it is lightweight and easy to install, allowing for quick maintenance and reduced vehicle downtime. Source One Parts Center is the best destination for sourcing genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
0.40 IN x 0.96 IN Slot (4x)
VMRS
013-010-476: Proportioning Valve - Bobtail
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Service Port
1/4-18 NPT
Control Port
1/8-27 NPT
Width
101.1 mm (3.98 in)
Length
113.8 mm (4.48 in)
Height
137.4 mm (5.41 in)
Body Configuration
2 SUP / 4 DEL (2H + 2V)
Maximum Operating Temperature
200 °F (93 °C)
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Harmonized System (HS) Code
482190,848120
Crack Pressure
5.5 PSI
Mounting Bracket Direction
Bracket loose in box
Mounting Bracket Location
Bracket loose in box
Mounting Orientation (CW from Front Face)
Bracket loose in box
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.31 lb
