DESCRIPTION

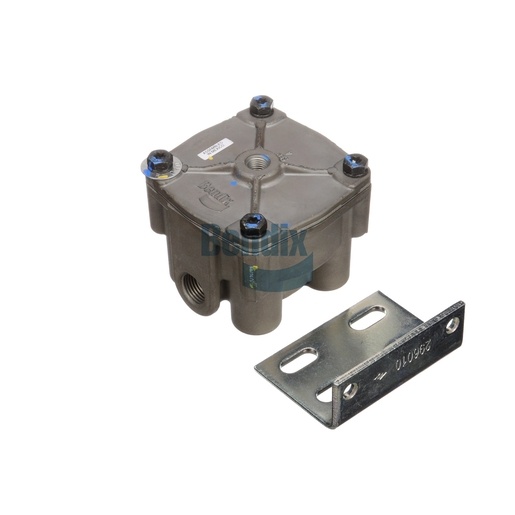

The Bendix relay valve is a vital component in the air brake system of commercial vehicles, ensuring safe and efficient operation. With a net weight of 1.3 kg, this relay valve features a robust design that facilitates the precise control of air pressure in the braking system, enhancing the overall responsiveness and effectiveness of your brakes. Its advanced engineering includes multiple delivery ports and a manageable crack pressure, making it an ideal choice for a wide range of applications. This relay valve not only boosts brake performance but also contributes to improved safety and reliability while on the road. Installation is straightforward, allowing for quick replacements to minimize vehicle downtime. For dependable quality and performance, Source One Parts Center is the best place to purchase genuine Bendix OEM parts for your commercial vehicle.
SPECIFICATIONS
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
101.0 mm (3.98 in)
Width
101.0 mm (3.98 in)
Delivery Port 1
3/8-18 NPT
Delivery Port 2
3/8-18 NPT
Delivery Port 3
3/8-18 NPT
Delivery Port 4
3/8-18 NPT
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Height
98.0 mm (3.86 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV040
Weight
2.89 lb
