DESCRIPTION

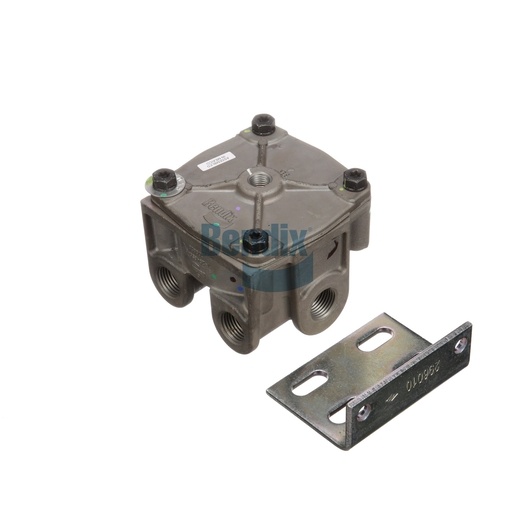

The Bendix Relay Valve is essential for improving the efficiency and safety of your commercial vehicle's braking system. This component is designed to control the flow of air within the braking system, ensuring rapid response times when braking is necessary. Weighing 1.3 kg, the relay valve is built to endure the rigorous conditions of heavy-duty use while maintaining exceptional performance. Its robust construction guarantees reliability and longevity, making it a trusted choice for fleet operators. This valve is easy to install, facilitating quick replacements and minimizing downtime. For those who prioritize quality, Source One Parts Center offers genuine Bendix OEM parts, ensuring your vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
102.0 mm (4.02 in)
Width
102.0 mm (4.02 in)
Body Configuration
2 SUP / 2 DEL (H)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848110,848120
Height
94.0 mm (3.7 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
2.89 lb
