DESCRIPTION

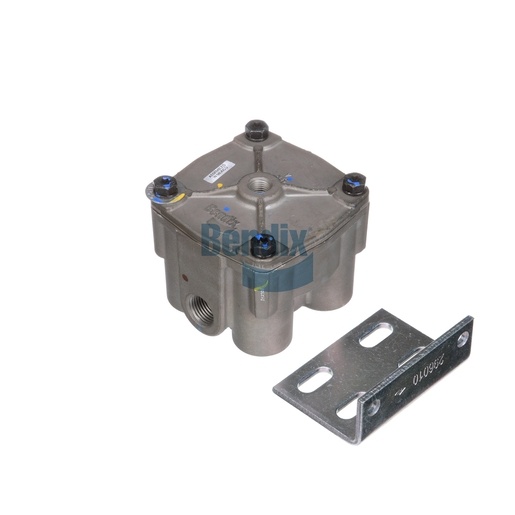

The Relay Valve is a critical component within your Bendix braking system, designed to enhance brake performance and reliability. This valve plays a key role in controlling air flow, ensuring that your brakes respond quickly and effectively when needed. With its durable construction, it is designed to withstand the demanding conditions of commercial vehicle operation, providing reliable performance over time. Investing in a high-quality relay valve means prioritizing your vehicle's braking efficiency and safety. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, including this relay valve, guaranteeing you receive quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Mounting
.96 IN x .40 IN Slot (4x)
VMRS
013-010-009: Relay Valve - Air Brake
Body Configuration
1 SUP / 4 DEL (V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control / Secondary Service Port
1/4-18 NPT
Length
101.0 mm (3.98 in)
Width
101.0 mm (3.98 in)
Maximum Operating Temperature
200 °F (93 °C)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Height
94.0 mm (3.7 in)
Exhaust Port
Dust Shield
Mounting Bracket Location
Loose in Box
Country of Origin
Mexico
TMC Washer
RV055
Weight
3.09 lb
